FAUST CTF 2025
I participated in the FAUST CTF 2025 as a solo player, and it turned out way better and way worse than I could have expected. In this post, I want to share the layout of my infra, the goals I tried to achieve, and how it all went down.
Goals
I am playing as a solo player against teams with multiple people. Winning is not a realistic goal, simply by not being able to work on all services at the same time. ADCTFs have a lot of parallel tasks, which I am not capable of doing. So, what do I want to achieve? Well, I want to see if the new infra I have created holds up in a real CTF. The application that I primarily wanted to test is Cera. Cera is a PCAP analysis tool that performs classification on network traffic, and reconstructs complete exploit scripts. It is subject of my master thesis, and will be open sourced at a later day.
Nevertheless, we need to set concrete goals, so we know if we succeeded or failed. I decided to look at how many players planned to participate in the CTF. I know that it is a larger CTF, so my infra will probably need to be able to handle a lot of traffic. When I looked at the “Registered Teams” section, I counted about 300 teams. As you have to host your own vulnbox, I assumed 50% of the registered “teams” were not up to the task, and would just not show up. Of these 150 teams, I assumed that there are another 50% that would not be able to do any attacks at all, either due to lack of skill, or unpreparedness. This leaves us with 75 teams that would actually attack and therefore would count as competition for me. Of those teams there are always teams that manage to break their services completely and then drop off because their SLA tanks. So, my goal was to be in the top 50 teams. This was an ambitious goal, as I was running completely new infra, that was never tested in a live CTF environment before. Let’s see how that infra looked like.
Planned Infra vs. IPv6 support
The infra of the organizers is sponsored by Hetzner, so I decided to also use Hetzner for my infra. I knew I wanted to separate most of my services away from the vulnbox itself. Therefore, I opted for a four VM setup. One VM was for the vulnbox itself, one for my traffic analysis (Cera), and a third for running attacks (using ataka). The last VM was my router VM that would connect everything together. The router VM connects to the gamenet, creates a private network for the vulnbox and another network for the tools. Lastly, it hosts a OpenVPN server that allows me to connect to my infra from home.
So the planned infra looks like this:
I used OpenTofu and Ansible to provision everything. Then I ran into the first problem. Hetzners private networks do not support IPv6… 🤦 FAUST CTF is an IPv6 only CTF, so I had to find a workaround. The services would probably also work via IPv4, but at least the Attacker-VM needs to be able to resolve the IPv6 addresses of the opponents. So I created the first cursed part of the infra: Running WireGuard tunnels through the private networks, to be able to route IPv6 traffic.
The second challenge was to upload the vulnbox image to Hetzner. This is probably a task that not only CTF players have. Why is this so hard? The following command worked in the end:
docker run --rm -e HCLOUD_TOKEN="..." ghcr.io/apricote/hcloud-upload-image:v1.1.0 upload \
--image-url "https://faust.cs.fau.de/files/faustctf/2025/vulnbox.qcow2" \
--server-type cx32 \
--format qcow2 \
--description "FAUST 2025 Vulnbox"The last design decision I chose was to run mitmproxy on the router VM for each service, so there is a traffic normalization step before the traffic hits the vulnbox. This is important because some teams use traffic fragmentation to obfuscate their network traffic. Wireshark and other common tools will mostly deobfuscate this traffic, but my beloved Cera tool does not support this yet. The CTF documentation states that the organizers already intercept the traffic, but I wanted to be sure. It is easier to just run a reverse proxy that forces the traffic to be clean between the proxy and the vulnbox. Lastly, I configured tcpdump to dump all traffic between the proxies and the vulnbox to be stored and sent to Cera for analysis. Another benefit of using mitmproxy is that I can also filter out known exploits, or even “patch” vulnerabilities in the network traffic.
How Hetzner screwed me over
On the day before the CTF I decided to do a last test of the infra. I had deployed everything each time from scratch every time I worked on it, so I was confident that my setup scripts work. These tests were performed with low power VMs to save costs during development. The night before the CTF I decided to do a final test with the actual VM types I would use during the CTF. Then I realized that Hetzner has very aggressive limits for new users… I can only create 5 VMS. That’s no problem, I only need 4. But I also wanted to have a really powerful one for my analysis tasks. I knew that Cera eats 64RAM on small CTFs with less than 100 teams. So 128GB RAM would be the one I wanted to go for. Instead, I only had access to the CCX33 instance with 32GB RAM and 8-cores. This was a bummer, because I really wanted to evaluate Cera in this CTF and I knew that it would just not be able to keep up with the traffic. It was late at night, so I decided to leave it as is. I could have looked for other clouds or even host it on my local machine that had at least 64GB of RAM, but I was too tired to do so. For all other VMs I used CPX41 which provides 16GB RAM and 8 shared cores. This was much more than I needed, but I did not want to rescale during the CTF and the costs were small anyway. I wanted to buy a more expensive VMs, but Hetzner would not allow me to do so…
The CTF
The day of the CTF started as planned. One hour before the decryption keys were released, I spun up all my VMs, and configured everything. The VPN connection status page helped a lot to see if everything was working. I prepared a written script for all the tasks that needed to be done at the start of the CTF, so I just followed that. I plan on releasing such a script in the future, so stay tuned.
Once the keys were released, I performed the basic first steps. I took the decrypted services and created a tar file. This tar file was downloaded to my local box, so I could look at the service code more easily. While this was going on, I created git repositories for each service, and made sure each service would have at least an initial commit.
Then I started with my first run through the services.
The goal was to identify the name of the service and the open ports for it.
This mapping was entered into my setup script for the reverse proxies and into the service configuration for Cera (even if I already knew that Cera will be useless).
While the proxy setup scripts are running, I started with my first analysis round for the services.
In this round I start to take notes on the services.
I note which technologies are used, and I check for obvious vulnerabilities, like hardcoded credentials that need to be changed before the gamenet opens.
Already the first services birthdaygram had a static JWT secret.
I noted this down, changed the secret and redeployed the service.
Then I went on to the next service.
Exploiting the vulnerability is not the goal of the first round.
I just want to patch any obvious vulnerabilities, so I do not get pwned immediately.
Changing of static keys might also invalidate existing sessions or cookies.
I do not want to break the checker once it is running, so changing the secrets is important before the gamenet opens.
The other services did not have obvious vulnerabilities, so I just noted down the technologies used and moved on.
The setup and the first analysis round took about 45 minutes.
So at this stage I had about 15min left until the gamenet opens.
I decided to use this time to write an exploit for the hardcoded JWT secret in birthdaygram.
This was simple, but I needed to wait for the gamenet to open to find out where the flags would be stored and how the flag ids would look like.
The gamenet opened, checker traffic started and the first exploits start hitting the services.
As suspected, birthdaygram was hit right from the start.
So the exploit must be as simple as the JWT secret abuse I found.
Sadly, I did not figure out where the stupid flag was stored…
But then I realized something more severe. All my services were down. That’s bad. Luckily I quickly figured out that my proxies were listening on the wrong IPv6 address. I still had the address of the test vulnbox in the proxy configuration. A quick redeploy of the proxies fixed this, but that cost me 7 ticks of uptime.
In minute 44 of the CTF I realized that also my proxy on birthday-melody was not working.
birthday-melody is a service hosted over HTTP, but it was not happy when using mitmproxy in HTTP mode.
So I switched it to TCP mode, and the service was happy again.
So the first hour of the CTF was rough.
I already lost a lot of points due to downtime, and I could not figure out where the flag was stored in birthdaygram.
I finally figured out the jabcode-like images have flags encoded in the LSBs of the pixel colors and put it in an exploit script at 2h 30min after the network opened.
Sadly, changing the JWT secret did not fix everything.
There was still successful exploits against me.
Because Cera was not doing anything useful, I started to write log statements into the proxy scripts of mitmproxy.
I have never used mitmproxy as a filtering reverse proxy before, so this took some time.
I closed the vulnerabilities involving renaming your account and placing comments, which also leak the flag images.
The service was completely patched at the 6-hour mark.
Half an hour later I decided to update my initial exploit for birthdaygram to also abuse the account renaming vulnerability in case the JWT token forging would not produce flags.

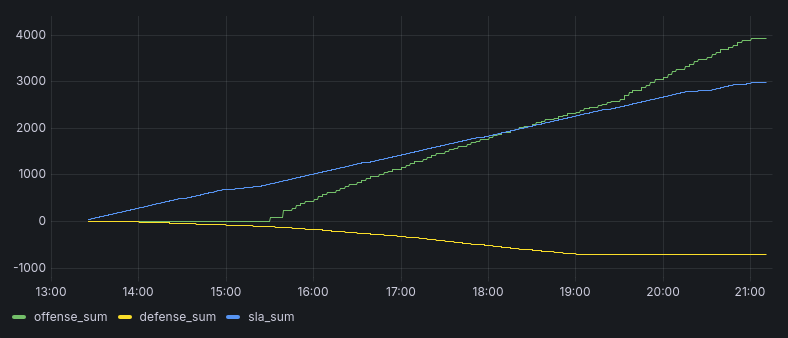

The scoring shows that this was a good decision, by showing a kink in the attack_sum timeseries.

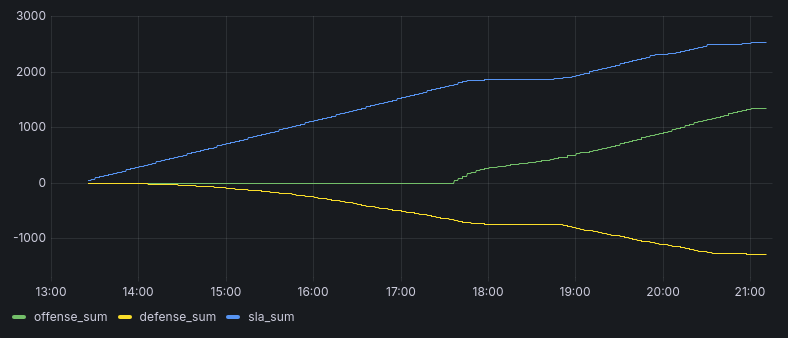

While I was working on birthdaygram, I also started to look at cake.
This service was written in Cobol.
I found an exploit using my logger in mitmproxy.
I manually rebuilt the exploit using pwn-tools, and started it 4h 30min into the CTF.
Sadly, the service went down at almost all teams at the same time.
It took around 45min for the organizers to tell us, that this was not a fault of their checker infra.
Restarting the service fixed it for me, but I had a lot of downtime here.
At least many other teams also did not recognize that the fix was actually simple.
I decided to not touch the actual Cobol code, but just filter out exploits using mitmproxy.
I managed to block some exploits this way, but until the end many of them still got through.
Having more experience with mitmproxy would have helped here.
One last service was exploited during the CTF, but I did not manage to replicate it, as it was a “crypto” exploit, that could not be reconstructed by looking at network traffic.
Aftermath and Learnings
After 9 hours of ADCTF action, I ended up on rank 42!
This was great success for me, as I also managed to beat the austrian team defragmented.brains (with multiple players) which ranked 48th.
My vulnbox saw 10GiB of traffic, which I have as PCAPs for further analysis. I also took snapshots of the scoreboard every 30sec, to be able to show how the CTF evolved over time. The scoreboard data will be discussed in another article.
What did I learn? Having a written script for the start of the CTF is super important. I also created a checklist of which files I wanted to keep after the CTF. Those lists are very useful. I learned that just using a cloud provider such as Hetzner is not as easy as it seems. You have to build your infra around the limitations of the provider. And lastly, you have to monitor your service uptime in the first round, to check if it is actually working.
In the end, I want to say that it was a great ADCTF, and I am looking forward to the next one.
